Cross Heads
Spark Extrugen Cross Heads are designed as per different Cables Like Single and Dual Coating Heads, With dot marking on Cable, Dual Line on Cable, Tripple Extrusion Layer Cross Head, Cross Heads Providing in Die Centering (manual) and Self Centering (Auto), Cross Head Torpedo is designed for smooth and even material flow in profile channel to ensure a uniform thickness of coated material on wire, cross heads are designed with easy handling operation and quick changing of tip/die without disturbing the head main assembly, cross head torpedo profile is machining on VMC machine to give us a accurate and even surface before polishing and other work.
Technical Characteristics :
| Cross Head | Max Tip Size | Max Die Size | Fix Center | Die Center | Skin | Stripe | Triple Layer |
|---|---|---|---|---|---|---|---|
| STX 4/6 | 4 mm | 6 mm | |||||
| STX 9/15 | 9 mm | 15 mm | |||||
| STX 16/20 | 16 mm | 20 mm | |||||
| STX 25/35 | 25 mm | 35 mm | NA | ||||
| STX 35/45 | 35 mm | 55 mm | NA | ||||
| STX 40/50 | 40 mm | 50 mm | NA | NA | |||
| STX 50/60 | 50 mm | 60 mm | NA | NA | |||
| STX 60/80 | 60 mm | 80 mm | NA | NA | |||
| STX 80/100 | 80 mm | 100 mm | NA | NA | |||
| STX 100/120 | 100 mm | 120 mm | NA | NA |

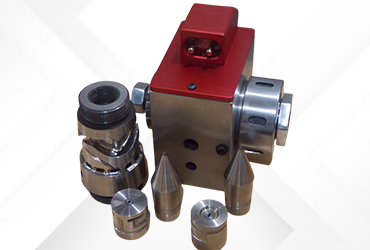

Fix / Self Center Crosshead

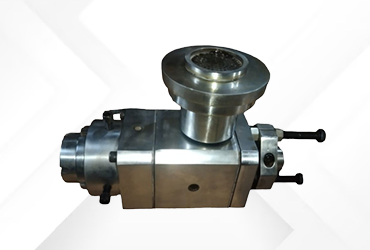

Die Center Crosshead

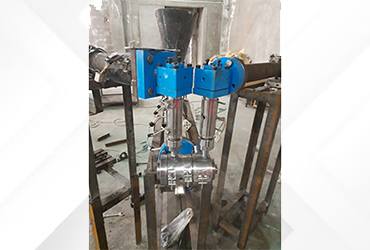

Triple Layer Self Center Crosshead

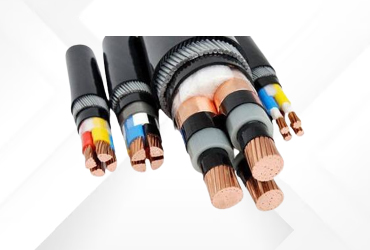

Power Cable Die Center Crosshead

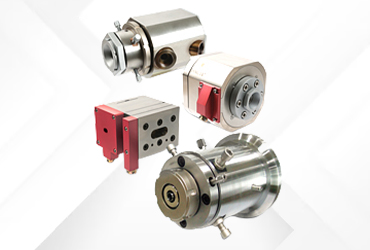

Flat Cable Self Center Crosshead

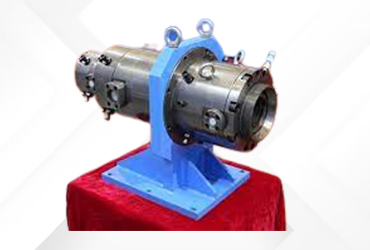

CCV Line Triple Layer Crosshead

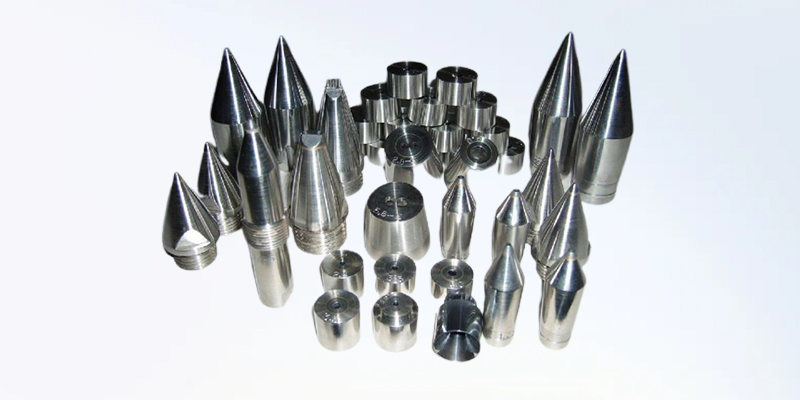

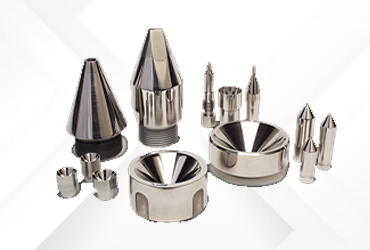

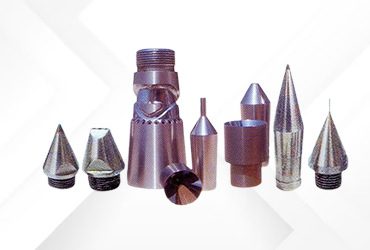

Dies Tips
